What is Wear Leveling?

Wear levelling (also spelled wear leveling) is a technique built into flash-memory devices to prolong their lifespan. Those devices include USB flash drives, solid-state drives (SSDs), memory cards, tablets and smartphones – anything that stores data on NAND flash. In this guide we explain what wear levelling is, how it works, the different types you will come across, and why it matters when you are buying branded USB flash drives in bulk.

Wear levelling explained

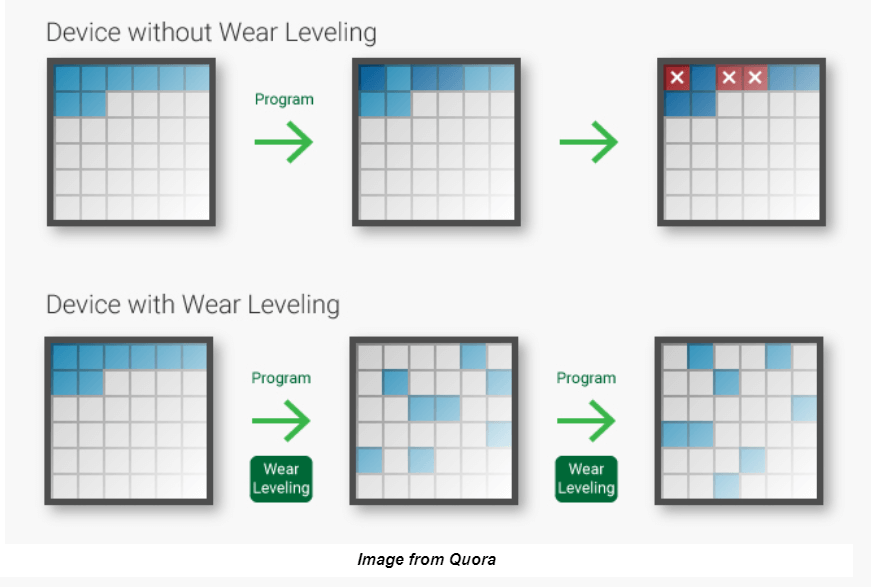

Every block of NAND flash memory can only be written to and erased a finite number of times – typically a few thousand to a hundred thousand program/erase (P/E) cycles – before it becomes unreliable. Wear levelling is a process, managed by the device’s controller, that makes sure those cycles are shared as evenly as possible across all the available blocks.

Without it, a device would tend to write repeatedly to the same physical location. Data that rarely changes would sit in some blocks while others were rewritten over and over, wearing out early. Once enough blocks fail, capacity shrinks and the drive eventually stops working reliably. By constantly moving data around and directing new writes to the least-used blocks, wear levelling keeps the whole device ageing at roughly the same rate – and that is what gives it a longer, more dependable life.

Why wear levelling matters for USB flash drive lifespan

A USB flash drive is essentially a NAND flash chip and a controller in a small housing. The quality of that controller – and the wear-levelling algorithm it runs – has a big influence on how long the drive lasts in real use. A cheap drive with poor wear management can start throwing errors after relatively little use, while a well-made drive will happily survive years of regular reading and writing.

That is why the components matter as much as the casing. If you want to understand how often a drive can safely be rewritten, our guide on how many times you can reuse a USB flash drive looks at P/E cycles in more detail.

The three types of wear levelling

Not all wear levelling works the same way. There are three main approaches, each spreading the load a little more thoroughly than the last.

Dynamic wear levelling

Dynamic wear levelling only manages the blocks that are actively being written to. When new data comes in, the controller directs it to whichever free blocks have the lowest erase counts. It is efficient and simple, but it leaves out blocks that hold static data – files that are written once and rarely changed – so those blocks stay “fresh” while the rest do all the work.

Static wear levelling

Static wear levelling goes a step further. As well as managing active writes, it periodically moves rarely-changed data out of low-wear blocks so those blocks can be put back into circulation. This evens out wear across the whole chip far more effectively than the dynamic method, at the cost of a little extra background work.

Global wear levelling

Global wear levelling uses a more powerful controller to take the benefits of static wear levelling and extend them across the entire device rather than a single chip unit. Every write operation looks for and uses blocks anywhere on the device with the lowest erase counts, so wear is balanced right across all the available memory.

What this means for your branded USB order

When you order branded USB flash drives in quantity, you are trusting that every unit will still work when your customer or delegate plugs it in months down the line. Drives with good controllers and proper wear levelling deliver that reliability; drives built to hit a rock-bottom price often do not. A failed drive with your logo on it is worse than no drive at all – it puts your brand on something that let the recipient down.

It is one of the reasons we are careful about the components in the drives we supply. If you are weighing up specifications and budget, our UK pricing guide for branded USB sticks explains what actually drives the cost, and our USB-C vs USB-A comparison helps you pick the right connector for your audience.

How to get the most life out of your USB drives

Wear levelling does the heavy lifting automatically, but a few sensible habits help your drives last even longer:

• Eject safely. Always use “safely remove hardware” so the controller can finish any pending writes rather than being cut off mid-operation.
• Don’t fill drives to the brim. Leaving some free space gives the wear-levelling algorithm more blocks to rotate through.
• Avoid using a flash drive as constant working storage. Heavy, repeated read/write cycles – such as running software directly from the drive – use up P/E cycles faster than occasional file transfers.
• Buy quality. The single biggest factor in longevity is the calibre of the flash and controller inside.

Why flash memory wears out in the first place

To understand why wear levelling matters, it helps to know why flash memory wears at all. Data is stored in NAND flash cells by trapping an electrical charge behind an insulating layer. Writing and erasing forces that charge through the insulator, and each time it happens the insulator degrades very slightly. After enough of these program/erase (P/E) cycles – anywhere from around a thousand on high-capacity consumer flash to a hundred thousand on premium chips – a cell can no longer hold charge reliably, and it wears out. This is a physical, gradual process, not a sudden failure, and it is the fundamental reason flash storage has a finite lifespan. Wear levelling exists precisely to manage it, spreading those unavoidable cycles across every cell so that no small group is worn out prematurely while the rest sit barely used. Our guide to how a flash drive works looks at the components involved in more detail.

Wear levelling and the drive’s other lifespan tricks

Wear levelling does not work alone – it is one of several techniques a good controller uses to keep a drive healthy. Bad-block management quietly retires any cells that have failed, mapping around them so they are no longer used. Error-correcting code (ECC) detects and fixes small errors as data is read, catching problems before they cause data loss. Over-provisioning sets aside a hidden reserve of spare capacity that the controller can draw on to replace worn cells and give wear levelling more room to work. Together with wear levelling, these techniques are what separate a dependable drive that lasts for years from a cheap one that fails early – and they all depend on the quality of the controller, which is exactly why the components you cannot see matter as much as the casing you can. It also explains why two drives of the same capacity can have very different real-world lifespans.

Does wear levelling matter for USB drives specifically?

Wear levelling is often discussed in the context of SSDs, but it applies just as much to USB flash drives – they use the same NAND flash technology, just in a smaller, simpler package. The catch is that the quality of wear levelling in USB drives varies far more widely than in SSDs. A well-made branded drive will use proper dynamic, static or global wear levelling to extend its life; a bargain-bin drive may use only the most basic dynamic levelling, or implement it so poorly that some blocks wear out quickly. For everyday file transfers a USB drive rarely comes close to exhausting its cycles, so wear levelling matters most when a drive is used heavily or relied upon over a long period – and it is another reason to choose quality. Our guides to the different grades of USB flash and how many times you can reuse a drive explore this further.

Wear levelling is not a substitute for backups

One important caveat: however good a drive’s wear levelling, it does not make the drive immortal or your data invulnerable. Wear levelling extends and evens out a drive’s usable life, but flash memory still has a finite number of cycles, drives can still be lost, damaged or corrupted, and stored data can slowly fade over many years, as we cover in how long a USB stick holds your data. So while good wear levelling is a genuine mark of quality and buys you a longer, more reliable life from a drive, it should never be a reason to trust a single stick with your only copy of anything important. Treat wear levelling as what it is – a clever technology that gets the most out of the flash inside – and always keep a backup of anything you cannot afford to lose. Buy a quality custom USB drive with proper wear management, look after it, and back up your files, and you have covered every base.

The takeaway for buyers

If there is one practical lesson here, it is that wear levelling is a quiet indicator of quality. You cannot see it, and you will never interact with it directly, but its presence and sophistication are a big part of what determines whether a drive keeps working for years or fails after months of use. When you are choosing branded USB drives – especially in bulk, where a batch of early failures would be embarrassing – it is worth asking your supplier about the quality of the flash and controllers they use, because that is what governs the wear management inside. A reputable supplier will be happy to answer; a bargain seller often will not. Choosing quality, in other words, is really choosing good wear levelling by another name.

Help & Support

Frequently Asked Questions

Is wear levelling the same as wear leveling?

Yes. “Wear levelling” is the British spelling and “wear leveling” is the American spelling of exactly the same technology. Both refer to the process of spreading write and erase cycles evenly across a flash device’s memory blocks.

Does wear levelling make a USB stick last forever?

No – flash memory still has a finite number of program/erase cycles. Wear levelling makes sure those cycles are used efficiently across the whole device, so the drive reaches a much longer usable life than it would otherwise, but it does not make it indestructible.

Do all USB flash drives have wear levelling?

Most modern drives include some form of wear levelling in their controller, but the quality varies enormously. Better controllers use static or global wear levelling for a longer, more even lifespan, while the cheapest drives may only use basic dynamic levelling – or implement it poorly.

Can I check the wear on a USB drive?

Consumer USB sticks rarely expose their wear data, unlike many SSDs which report health through S.M.A.R.T. attributes. In practice, the best safeguard is to buy quality drives from a reputable supplier and replace any drive that starts behaving unreliably.

Does wear levelling affect how fast a USB drive is?

Wear levelling adds a small amount of background management, but on modern controllers the effect on everyday read and write speeds is negligible. For promotional drives holding documents, presentations or videos, you will not notice any difference in performance.

Should I worry about wear levelling when ordering branded USB drives?

No. Reputable branded drives use controllers with wear levelling built in, so the memory is used evenly and lasts for years of normal promotional use. Just order from a supplier who uses genuine, fully tested memory chips and you are covered.

Conclusion

Wear levelling is the quiet engineering that decides how long a flash drive really lasts, spreading the workload so no single block wears out ahead of the rest. For everyday users it works invisibly; for anyone buying branded USB drives in bulk, it’s a reminder that the controller and flash inside matter far more than the number on the price tag. Choose quality drives with proper wear management and you hand out something that keeps working – and keeps your brand in front of people – for years, not months.
