How Does a Flash Drive Work and What’s Inside It?

USB flash drives are so small and so familiar that it is easy to forget they are sophisticated pieces of technology. Plug one in and files simply appear – but how does a flash drive actually work, and what is inside that little casing? In this guide we open up the humble USB stick, look at each component, and explain how it stores your data without any moving parts or power. Understanding what is inside also helps explain why some drives are fast and dependable while others are slow and short-lived.

What is a USB flash drive?

A USB flash drive – also called a memory stick, thumb drive or pen drive – is a small, portable storage device that combines flash memory with a USB interface. Unlike a hard drive, it has no moving parts: everything is done electronically, which is why flash drives are so compact, robust and quiet. They draw power directly from the USB port, need no separate battery, and hold onto your data even when unplugged. That combination of portability and reliability is what made them replace floppy disks and CDs almost overnight. Today a single drive smaller than a thumb can hold more than a room full of those old discs ever could, and it will survive being dropped, carried loose in a bag and plugged in thousands of times.

What’s inside a USB flash drive?

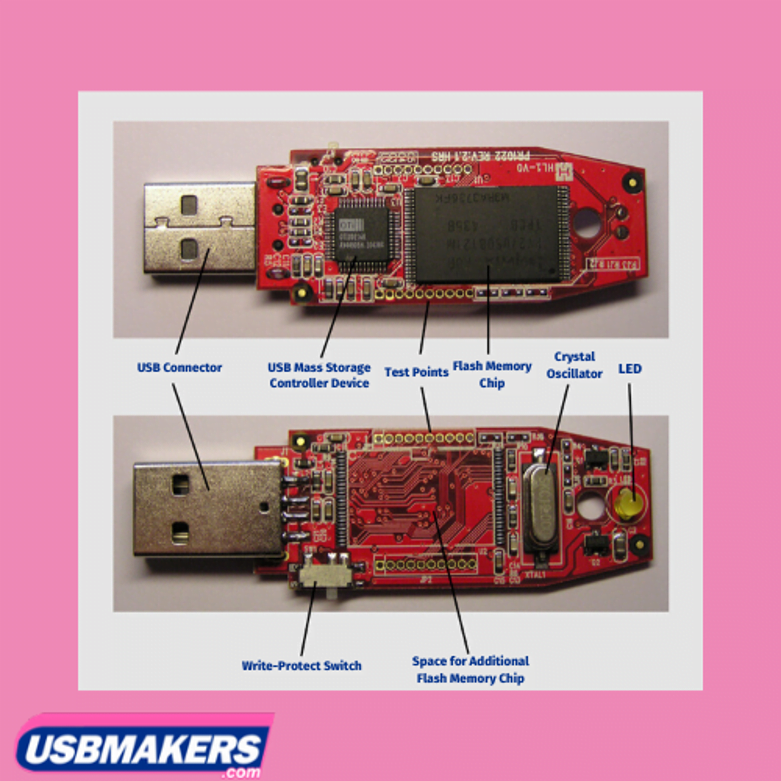

Crack open the casing and you will find a small circuit board carrying a handful of components. Each has a specific job.

USB connector

The metal connector that plugs into your device is the drive’s gateway. It carries both the data signals and the small amount of power the drive needs to operate. Most are the classic Type-A shape, though USB-C connectors are increasingly common.

Controller chip

The controller is the brain of the drive. It manages every read and write, translates between the computer and the flash memory, handles error correction, and runs the wear-levelling algorithms that spread usage evenly across the memory. The quality of the controller has a huge influence on how fast and how reliable a drive is.

NAND flash memory

This is where your data actually lives. NAND flash is a type of non-volatile memory made up of millions of tiny cells, each able to hold an electrical charge that represents your ones and zeros. It is called “flash” because whole blocks of cells are erased in a single flash of electrical activity.

Crystal oscillator

A small quartz crystal provides a steady clock signal that keeps the controller’s operations properly timed. It is easy to overlook, but without an accurate clock the drive could not coordinate reading and writing reliably.

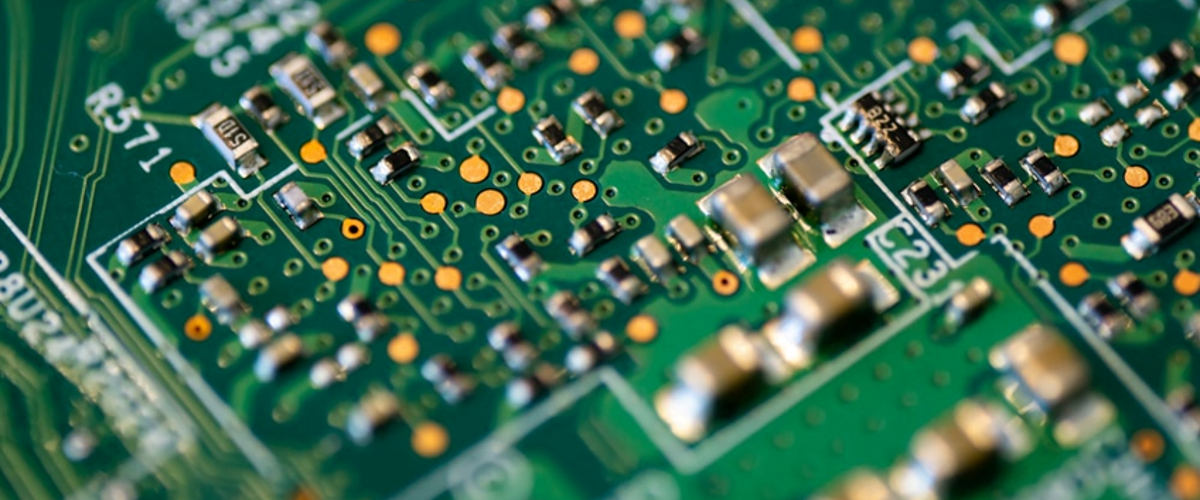

Printed circuit board (PCB)

The PCB is the green board everything is mounted on. It physically holds the components and carries the electrical connections between them, tying the connector, controller and flash memory together into a working whole.

Casing

Finally, the casing protects the delicate electronics from damage, dust and moisture. This is the part you actually see and brand – and it can be made from plastic, wood, metal, or almost any shape you can imagine for a custom USB stick.

How does a flash drive store data?

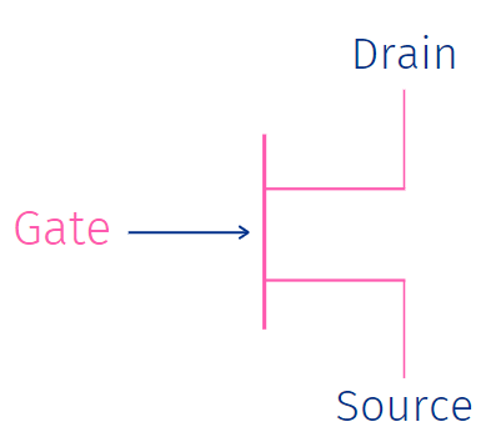

The magic happens in the NAND flash. Each memory cell contains a “floating gate” transistor that can trap and hold an electrical charge. Because the gate is insulated, that charge stays put even when the power is removed – which is why the memory is non-volatile. The presence or absence of charge (and, in modern drives, the precise level of charge) represents the binary data your files are made of. Cells are grouped into pages, and pages into blocks, which the controller manages as it stores and retrieves your data.

How does reading and writing work?

Reading is straightforward: the controller checks the charge stored in each cell and reports back the ones and zeros. Writing is more involved. Flash memory has an unusual quirk – data can be written a page at a time, but it can only be erased a whole block at a time. So to change existing data, the controller often has to move valid data elsewhere, erase the block, and rewrite it. Managing all this efficiently – and making sure no single block gets worn out by constant rewriting – is the controller’s most important job, and it is why wear levelling matters so much for a drive’s lifespan.

Why flash memory is “non-volatile”

Volatile memory, such as a computer’s RAM, loses everything the moment the power goes off. Flash memory is different: thanks to those insulated floating gates, it retains data for years without any power at all. That is what makes a USB drive so useful for carrying files around – you can unplug it, put it in a drawer for months, and the data will still be there when you return. It is not completely permanent, though; over a very long time, and as the memory wears, the trapped charge can slowly leak, which is one reason important data should always be backed up in more than one place.

What affects a flash drive’s performance and lifespan?

Two identical-looking drives can perform very differently, and it comes down to what is inside. The grade of NAND flash matters – higher grades are faster and endure more write cycles – as our guide to the different grades of USB flash drives explains. The quality of the controller determines speed, error handling and how well wear is managed. And the USB version sets the maximum transfer speed. Cheap drives cut corners on all three, which is why they can be slow and fail early, while a well-made drive stays fast and reliable for years – and can be safely reused many times, as we cover in how many times you can reuse a USB flash drive.

From components to your branded drive

All of this is worth knowing when you order branded drives, because the parts you cannot see matter as much as the logo you can. A drive with quality flash and a good controller will keep working long after a bargain-bin equivalent has failed – and a failed drive with your logo on it reflects badly on your brand. That is why we pay attention to the components inside the drives we supply, whether it is a classic branded tech giveaway, an OTG USB-C stick for modern devices, or a fully custom-shaped drive. The casing gets the attention; the electronics do the work.

A brief history of the flash drive

The technology that powers your USB stick has a surprisingly short history. Flash memory itself was invented at Toshiba in the 1980s, but it was not until around the year 2000 – when the USB standard had matured and flash had become affordable enough – that the first USB flash drives reached the market. Early models held just a few megabytes and cost a small fortune per gigabyte. Yet they were transformative: for the first time you could carry meaningful amounts of data in your pocket and plug it into almost any computer without special software or drivers. Capacities have since grown from megabytes to hundreds of gigabytes while prices have collapsed, and the same core design – controller plus NAND flash plus USB connector – still underpins every drive made today. It is a rare example of a technology that arrived, dominated and matured all within a couple of decades.

Flash drives, SSDs and memory cards

USB flash drives are not the only devices built around NAND flash – the same basic technology sits inside solid-state drives (SSDs), SD and microSD cards, and the storage in your phone. The differences come down to scale, speed and the controller. An SSD uses many more flash chips and a far more powerful controller to deliver the speed and endurance a computer’s main drive demands, while a USB stick keeps things small and affordable for portable, occasional use. Memory cards are essentially flash storage in a different physical format for cameras and mobile devices. Understanding that they are all cousins helps explain why the quality of the flash and controller – not just the capacity printed on the label – is what really separates a good storage device from a poor one, whichever form factor it happens to take on the outside.

Help & Support

Frequently Asked Questions

How does a USB flash drive work?

A flash drive stores data on NAND flash memory chips, which hold an electrical charge in millions of tiny cells even when unplugged. A controller chip manages reading and writing, and a USB connector carries the data and power. Because there are no moving parts, it is fast, compact and robust.

What is inside a USB flash drive?

Inside you will find a USB connector, a controller chip (the brain), one or more NAND flash memory chips (where data is stored), a crystal oscillator for timing, a printed circuit board that connects everything, and a protective casing that is the part you see and brand.

How is data stored on a flash drive?

Data is held in NAND flash cells, each with an insulated “floating gate” that traps an electrical charge. The presence, absence or level of that charge represents the binary ones and zeros of your files, and because the gate is insulated the data remains even without power.

What does non-volatile memory mean?

Non-volatile memory keeps its contents when the power is switched off, unlike a computer’s RAM which is wiped instantly. Flash memory is non-volatile, which is exactly why a USB drive can carry your files around and still have them intact after months unplugged.

Why do some flash drives last longer than others?

It comes down to the components inside – the grade of NAND flash, the quality of the controller and how well it manages wear levelling. Better parts mean faster speeds and more write cycles before failure, while cheap drives cut corners and tend to be slower and shorter-lived.

Do flash drives have moving parts?

No. Unlike traditional hard drives, USB flash drives are entirely solid-state with no moving parts. Everything happens electronically in the flash memory and controller, which is what makes them so small, quiet, energy-efficient and resistant to knocks.

Conclusion

For such an everyday object, a USB flash drive is a neat piece of engineering: a controller, some NAND flash memory, a connector and a few supporting parts working together to store your data electronically, with no moving parts and no need for power to hold onto it. Knowing what is inside not only satisfies the curiosity of anyone who has wondered how their files survive in that little stick – it also explains why quality matters so much, because the flash and controller you cannot see determine how fast and how long the drive will serve you. If you are choosing branded USB drives and want ones built to last on the inside as well as the outside, our team is happy to help you choose the right specification for the job.
