USB Guide: Versions, Connections & Standards
At a glance
- USB (Universal Serial Bus) is the standard that connects and powers almost every device we use – and it has evolved hugely since 1996.
- Versions define speed: from USB 1.1 (12 Mbps) through USB 2.0 (480 Mbps) and USB 3.x (5–20 Gbps) to USB4 (40 Gbps).
- Connectors define shape: Type-A, Type-B, Mini, Micro and the reversible USB-C that is fast becoming universal.
- Understanding the difference helps you choose the right cable, device – or branded USB drive – for the job.
The letters “USB” appear on almost everything we own, yet the standard behind them is more layered than most people realise. “USB 3.0” describes a speed; “USB-C” describes a connector shape – and the two are often confused. This USB guide to versions, connections and standards untangles it all: where USB came from, how each version improved on the last, what the different connectors are for, and what it all means when you are choosing a device or a branded USB drive.
The origins of USB
Before USB, connecting a device to a computer was a headache of competing ports – serial and parallel connectors, PS/2 sockets and specialist plugs, each with its own cable and its own limitations. In the mid-1990s a group of technology companies formed the USB Implementers Forum to fix this, and the first Universal Serial Bus specification arrived in 1996. The goal was simple but ambitious: one standardised connector that could carry data and power to any device, be easy to use, and support plug-and-play. USB delivered on that promise so completely that it has become the most widely used connection standard in the world.
USB version history
Each numbered USB version marks a step up in data-transfer speed and capability. This is the part people mean when they talk about a drive being “USB 2.0” or “USB 3.0”.
USB 1.0 and 1.1
The original standard offered a “low speed” rate of 1.5 Mbps and a “full speed” rate of 12 Mbps – fine for keyboards, mice and other simple peripherals. USB 1.1, released in 1998, ironed out the early issues and brought USB into mainstream use.
USB 2.0
Launched in 2000, USB 2.0 raised the top speed to 480 Mbps – a huge leap that made USB practical for storage, cameras and printers. It became the long-time standard for flash drives and remains extremely common today because it is cheap, universally compatible and fast enough for everyday files.
USB 3.0, 3.1 and 3.2
USB 3.0 arrived in 2008 with “SuperSpeed” transfer of up to 5 Gbps – more than ten times faster than 2.0 – and the familiar blue connector. Later revisions renamed and extended the family: USB 3.1 Gen 2 reached 10 Gbps, and USB 3.2 Gen 2×2 doubled that again to 20 Gbps using two data lanes over a USB-C connector. All remain backwards compatible with older ports, just at the slower device’s speed.
USB4
The latest major standard, USB4, launched in 2019 and delivers up to 40 Gbps. It is built on the Thunderbolt 3 protocol, uses the USB-C connector exclusively, and can intelligently share bandwidth between data and video. It represents the convergence of USB and Thunderbolt into a single high-performance standard.

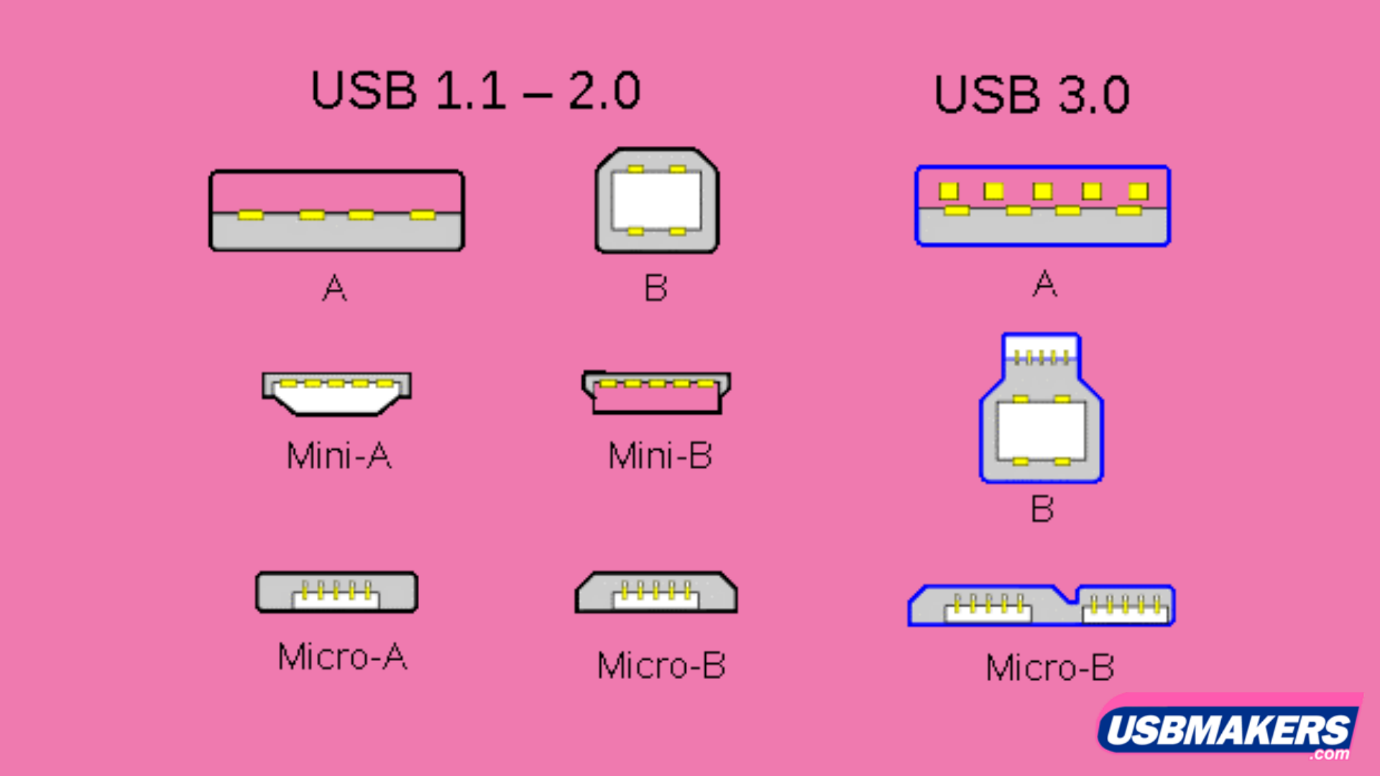

USB connector types
Where versions describe speed, connectors describe the physical shape of the plug and port. Several have come and gone over the years.
USB Type-A
The classic flat, rectangular USB plug found on computers, chargers, TVs and most flash drives. It only fits one way up and has been the most recognisable USB connector for decades. It is still everywhere, though gradually being joined by USB-C.
USB Type-B

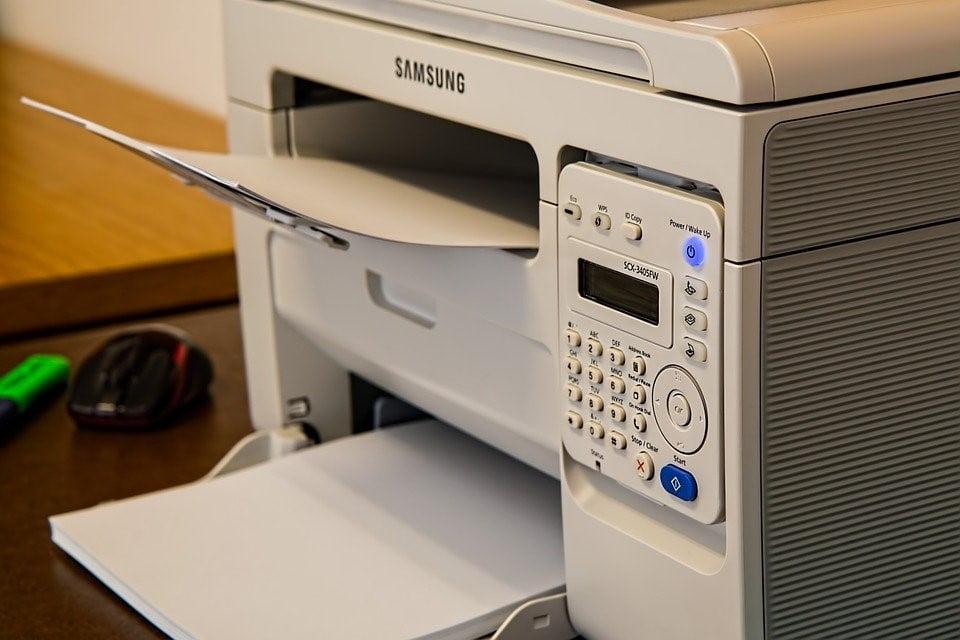

A squarer connector used mainly on larger peripherals such as printers and scanners. You rarely see it on portable devices, but it remains common at the “device” end of many desktop accessories.
Mini and Micro USB
As devices shrank, so did their connectors. Mini-USB appeared on early cameras and MP3 players, then the smaller Micro-USB became the standard charging port for phones and tablets for many years before USB-C took over.
USB-C
The modern, reversible connector that plugs in either way up. USB-C is small, robust and capable of carrying high-speed data, high-wattage power and video all through one port – which is why it is rapidly becoming the universal connector across phones, laptops and accessories. Crucially, USB-C is a connector shape, not a speed: a USB-C port might run at USB 2.0 or USB4 speeds depending on the device.
USB On-The-Go (OTG)
USB OTG lets a device act as both host and peripheral – so a phone or tablet can read directly from a USB drive without a computer. OTG USB-C drives are increasingly popular for exactly this reason; our guide to what OTG USB drives are explains how they work.
USB-C: the new universal standard
USB-C deserves special mention because it is reshaping the whole ecosystem. Its reversible design ended the age-old “wrong way up” frustration, and its ability to carry data, power delivery and DisplayPort video through a single cable means one port can now do the job of several. Regulators have accelerated the shift by mandating USB-C as a common charging standard for many devices, and manufacturers have followed. For anyone buying tech – or branded drives – USB-C compatibility is increasingly the sensible default, especially for audiences on modern laptops and phones. If you are weighing it up, our USB-C vs USB-A comparison looks at the trade-offs for promotional drives.
What about Thunderbolt?
Thunderbolt is a related high-speed standard developed by Intel and Apple that uses the USB-C connector. Thunderbolt 3 and 4 offer up to 40 Gbps and add features like daisy-chaining multiple devices and driving high-resolution displays. Because USB4 is built on the Thunderbolt 3 protocol, the two standards have effectively converged – though full Thunderbolt certification still guarantees the highest performance and feature set.
What this means for your branded USB drive
For most promotional and business USB drives, the practical choice comes down to version and connector. USB 2.0 drives are the most economical and remain perfectly adequate for documents, presentations and general files – ideal for large giveaways. USB 3.0 drives cost a little more but transfer large files noticeably faster, which matters if you are pre-loading videos or big datasets, or if recipients will move a lot of data. And USB-C drives – or dual-connector drives with both USB-A and USB-C – are the future-proof choice for audiences on modern devices. Browse our branded tech range or a custom USB stick to see the options. As a rule of thumb, match the version to the content and the connector to the audience: pick USB 2.0 for simple files on a budget, step up to USB 3.0 when speed or large pre-loaded data matters, and add a USB-C connector whenever your recipients are likely to be on modern laptops and phones.
USB power delivery and charging
USB has always carried power as well as data, but its charging ability has grown enormously alongside its speed. Early USB ports supplied just a couple of watts – enough to run a mouse or trickle-charge a phone. Modern USB Power Delivery (USB-PD), carried over USB-C, can deliver up to 100 watts, and newer revisions push that to 240 watts – enough to charge laptops, not just phones. That is a big part of why USB-C has become so dominant: a single port and cable can now fast-charge almost anything, replacing a drawer full of proprietary chargers. When you are choosing cables or devices, it is worth checking the wattage they support, because a cable rated for data may not carry high-power charging, and vice versa. For everyday flash drives this matters less – they draw very little power – but it is central to how the wider USB-C ecosystem now works.
How to tell which USB version you have
Working out what a port or drive supports is easier than it looks once you know the clues. Colour is the quickest hint: USB 3.0 ports and connectors are very often coloured blue inside, while USB 2.0 is usually black or white and the fastest ports are sometimes teal or red. Symbols help too – a “SS” (SuperSpeed) marking next to the USB logo indicates USB 3.0 or faster, and “SS” with a “10” means 10 Gbps. On a computer you can also check the system information – Device Manager on Windows or System Information on a Mac – which lists the USB controllers and their speeds. And remember that to get the full speed of a fast drive, both the drive and the port it is plugged into need to support that version; the connection always runs at the pace of the slower of the two.
Help & Support
Frequently Asked Questions
A USB version (such as USB 2.0, 3.0 or USB4) describes the speed and capabilities of the connection, while a connector (such as Type-A, Micro-USB or USB-C) describes the physical shape of the plug and port. The two are independent – a USB-C port, for example, might run at USB 2.0 or USB4 speeds.
USB 1.1 reaches up to 12 Mbps, USB 2.0 up to 480 Mbps, USB 3.0 up to 5 Gbps, USB 3.1 Gen 2 up to 10 Gbps, USB 3.2 Gen 2×2 up to 20 Gbps, and USB4 up to 40 Gbps. Real-world speeds are lower than these theoretical maximums and are limited by the slowest device in the chain.
No. USB-C is a connector shape, not a speed. A USB-C port can run at anything from USB 2.0 to USB4 speeds depending on the device, so two USB-C devices are not guaranteed to transfer data at the same rate.
Yes. You can plug a USB 3.0 drive into a USB 2.0 port and vice versa, and it will work – but at the speed of the slower of the two. To get full USB 3.0 speeds, both the drive and the port need to support USB 3.0.
USB OTG lets a device act as both a host and a peripheral, so a phone or tablet can read directly from a USB drive without a computer. OTG drives, often with a USB-C connector, make it easy to move files between mobile devices and standard USB sticks.
USB 2.0 is the most economical and fine for documents and general files, making it ideal for large giveaways. USB 3.0 is worth the extra cost if you are pre-loading large files or recipients move a lot of data. USB-C or dual-connector drives are the most future-proof for modern devices.
Conclusion
USB may look like a single, simple standard, but it is really two things working together: a series of versions that keep pushing transfer speeds higher, and a family of connectors that have shrunk and simplified over time towards the universal USB-C. Keep those two ideas separate – version for speed, connector for shape – and the jargon falls into place. Whether you are buying a cable, a laptop or a batch of branded USB drives, knowing which version and connector you need means you get the right performance without overpaying for capability you will never use. If you would like advice on the best USB version and connector for your branded drives, our team is happy to help.
